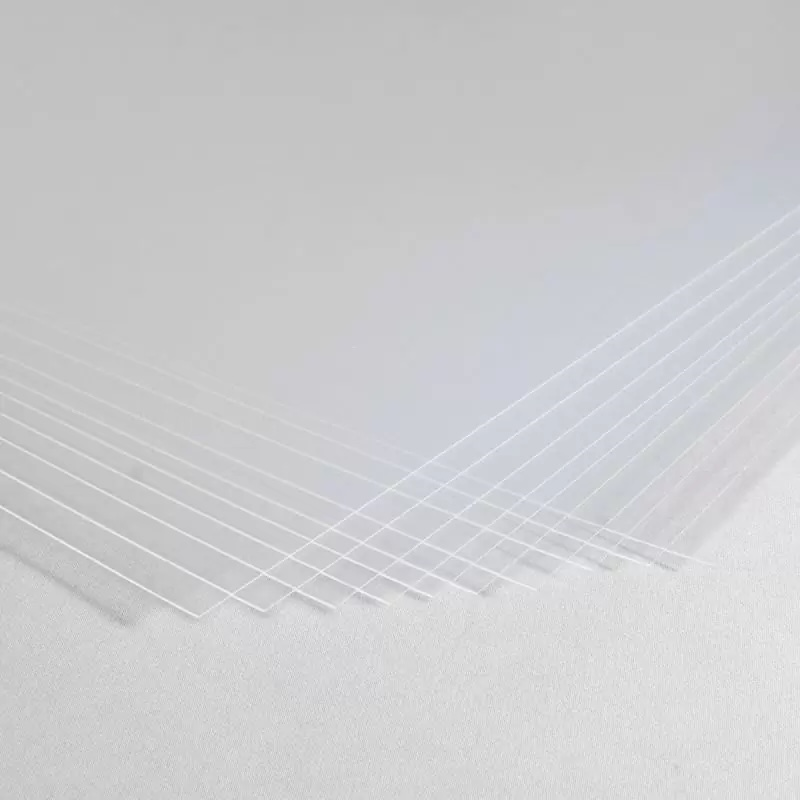

Name: ACLAR plastic film embedding sheets
Brand: ACLAR
SKU: GL105
Price: 202.0 AUD
Availability: InStock

Pack Size

Pack/10

Taxes and shipping applied at checkout.

Because of its chemical inertness, non-stick property, glass clarity, flexibility, and smooth surface, ACLAR® solves a variety of challenges associated with the processing of tissue culture cells, epoxy embedments, sectioning, and observations.

Size: 203 x 318mm, 0.198mm thick

It may be cut with scissors or blades and is safe for microtomy knives. It provides superior moisture barrier protection, is UV-transparent, and is free of plasticisers and stabilisers. It has a low dielectric constant and dissipation, is nonflammable, and does not age. The dielectric strength is quite strong. ACLAR® has the ability to be sterilised.

Features:

separates easily from epoxy
transparent fluorinated-chlorinated thermoplastic without volatile components
chemically inert for all practical purposes
cells adhere to it readily and remain attached after fixation, dehydration and critical point drying or embedding
accepts heavy metal sputter coating
stable in SEM; melting point 202C
ACLAR is as transparent as glass
fluorescence microscopy possible since ACLAR exhibits no detectable auto fluorescence
can be sectioned without damaging ultramicrotomy knives
considerably simplifies the preparation of cultured cells for all types of microscopy
sterilisable
gives flat sections
smooth surface makes LM observations possible
does not degrade under UV or gamma ray radiation
used as an O₂ barrier when flat embedding methacrylate or acrylic resins

Physical Data

Density	2.12
Thickness	7.8 mil (0.198mm)
Clarity	Clear
Water Absorption	nil
Water Vapor Transmission Rate @ 100°F (37.7°C) / 100% RH	0.003gm / 100in² / day (0.047gm / m² / day)
Dimensional Stability, 10 min @ 300°F (149°C)	<2%
Dimensional Change, 10 min. @ 300°F (149°C)	< 2%
Thermal Conductivity	4.7 x 10^-4 cal-cm/cm²sec °C
Crystalline Melting Point	395.6 - 399.2°F (202 - 204°C)
Flammability	Nonflammable

Chemical Resistance Data

Acetone	No effect
100% Ethyl alcohol	No effect
Liquid Nitrogen	Remains flexible
Osmium Tetroxide	No effect
Propylene Oxide	No effect
Butyl Alcohol	None
Carbon Tetrachloride	Slightly flexible
1,2-Dichloroethane	None
Ethyl Acetate	Very flexible
Ethyl Ether	Very flexible
Ethylene Oxide	Very flexible
Formic Acid	None
Gasoline	None
All Acids (HCl, H2SO4..)	None
Methanol	None
Toluene	Slightly flexible
Plastisolve	None

An 11mm disk punch is available.

Updated: 28-04-2024

Code	Pack Size	Availability*	Price (ex GST)
GL105	Pack/10	3 weeks	AU $202.00
