PELCO Precision wire saw accessories

SKU: ETP85011   |   Availability ⓘ

PELCO Precision wire saw accessories

SKU: ETP85011   |   Availability ⓘ
Type
Pack Size
P.O.R.


The PELCO Precision Wire Saw is capable of cutting a variety of materials while minimising damage from the cutting process using a gentle lapping action. This gentle action combined with high precision and low kerf damage makes the Diamond Wire Saw ideal for slicing samples where minimising mechanical damage and precise positioning of the cut are critical.

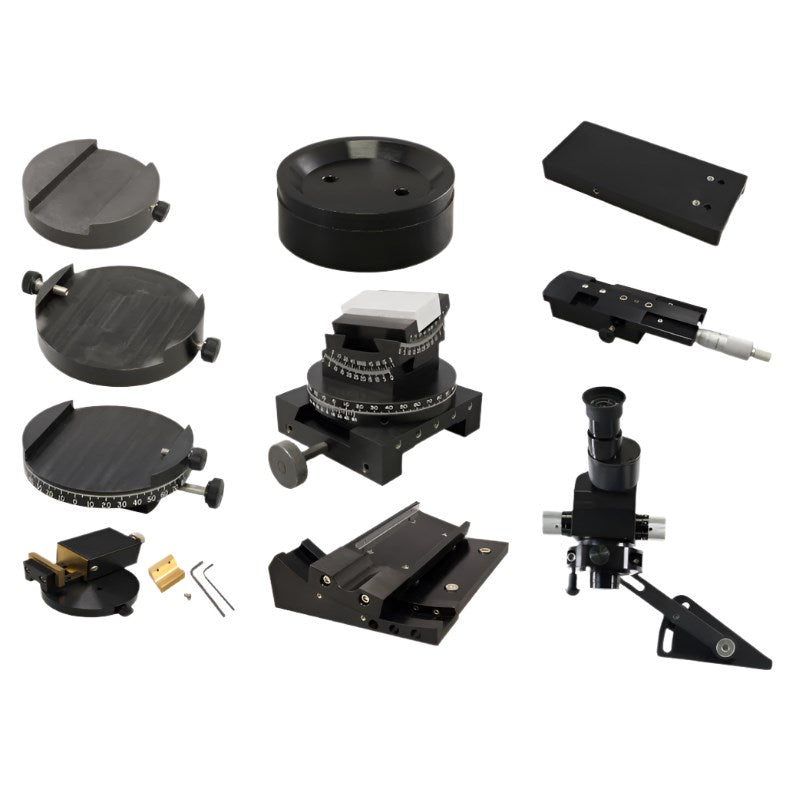

Accessories are available:


Code Type Description
ETP85051 Aluminium sample mount
Size 50.8mm x 50.8mm
ETP75053 Aluminium sample mount
Size: 25.4mm x 76.2mm x 6.35mm. For use with Single-axis Goniometer
ETP75054 Graphite sample mount Size: 22mm x 63.5mm x 3.2mm. For use with Single-axis Goniometer
ETP85015 Rotating work table, 25.4mm
Supplied with saw. Fixture rotates freely and handles samples that are wax-mounted to mounting blocks. Widely used for cutting TEM samples for wedge-polishing.
ETP85012 Rotating work table, 50.8mm
Accommodates a larger mounting block for working with larger samples, or mounting multiple samples at the same time.
ETP85014 Vice work table Vice can be rotated 360 degrees under the cutting arm, and has brass jaws accomodating specimens up to 33mm diameter.
ETP85013 Work table mount Used with the vice work tables, mounts to the indexing cross-slide, allowing the Work Tables to rotate 360 degrees under the blade.
ETP85016 Single-axis Goniometer with Vernier Scale Work table is 50.8mm and incorporates a Precision Goniometer with a Vernier scale, giving rotation accurate to 0.2 degrees for angled cuts.
ETP85030 3-axis Goniometer with Vernier Scales Allows tilting in axes of +/- 30? (for up to 60? of movement), and 360? rotation around the base. Each axis has a precision vernier scale accurate to 0.2?. It mounts to the indexing stage allowing for highly precise control of the cut. Ideal for working with single crystal specimens.
ETP85024 Tilting Table Mount Useful for very tall or awkwardly shaped samples and for precise angle control and achieving flat cuts with the 3-Axis Goniometer. Allows the cross-slide to be tilted upwards to remain parallel to the wire blade, required to account for the height of the 3-Axis Goniometer.
ETP85011 Goniometer Mounting Adaptor (for ETP85030) Used to mount the 3-axis Goniometer on the Indexing Cross-feed. Required to fit the Goniometer to the saw.
ETP85022-M Indexing Cross-feed (Metric) Uses a micrometer with 50.8mm of cross-travel to allow precise alignment of cuts, as well as to take multiple cuts at measured intervals. Ideal for TEM specimens.
ETP85022-I Indexing Cross-feed (Imperial)
ETP85040 Alignment Microscope Mounted on a moveable arm allowing the sample to be aligned for high-precision cuts.


Images are illustrative only. Please check product details before ordering.

Updated: 24-11-2024
Code Type Pack Size Availability* Price (ex GST)
ETP85011 Goniometer mounting adaptor Each 5 weeks P.O.R.
ETP85012 Rotating work table, 50.8mm Each 5 weeks P.O.R.
ETP85013 Work table mount Each 5 weeks P.O.R.
ETP85014 Vice work table Each 5 weeks P.O.R.
ETP85015 Rotating work table, 25.4mm Each 5 weeks P.O.R.
ETP85016 Single-axis goniometer Each 5 weeks P.O.R.
ETP85022-I Indexing cross-feed, imperial Each 5 weeks P.O.R.
ETP85022-M Indexing cross-feed, metric Each 5 weeks P.O.R.
ETP85024 Tilting table mount Each 5 weeks P.O.R.
ETP85030 3-axis goniometer Each 5 weeks P.O.R.
ETP85040 Alignment microscope Each 5 weeks P.O.R.
ETP85051 Aluminium sample mount Each 5 weeks P.O.R.
