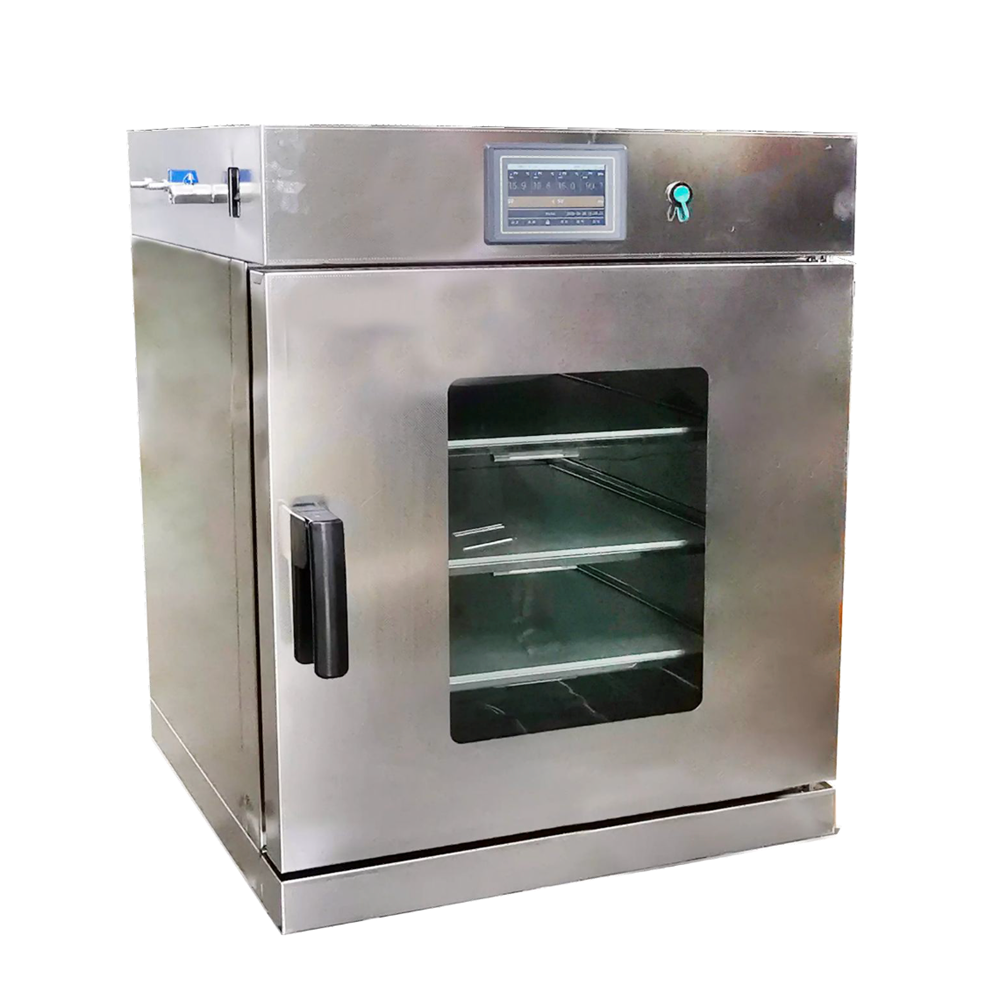

LABEC Automatic Vacuum Drying Ovens are available in two sizes with heating up to 250?C. These ovens are designed for drying heat sensitive, easily decomposed and easily oxidised substances, and are suitable for drying and heating powder articles. These models feature embossed stainless steel outer, with mirror stainless steel internal chamber. 5.0" touch screen controller with programmable PID microprocessor temperature and vacuum control and over temperature protection make this range the ideal choice for any laboratory.
Features:
Specifications:
| Model | ELA-PVO-052HS-HSP | ELA-PVO-092HS-HSP |
| HS = Heated shelves, HSP = Heated shelves and pump | ||
| Capacity | 52L |
92L |
| Temperature Range |
RT +10 - 250C (PT100 sensor) |
|
| Temperature Setting Accuracy |
0.1?C |
|
| Temperature Fluctuation |
?1%?C |
|
| Heating-up Time | ?40mins | |
| Vacuum Level |
<133Pa |
|

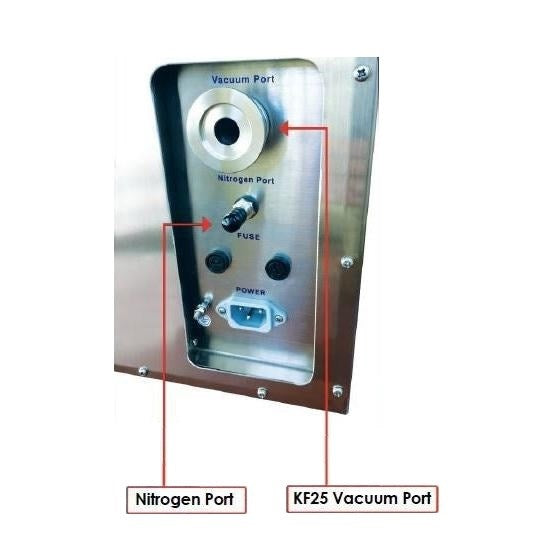

| Vacuum | Meter - Absolute pressure accuracy class 0.25 Exhaust - Manual and electric double exhaust device Air intake - Standard inflation port Nozzle - 10mm diameter |
|
| HSP Vacuum Pump System |
Double stage rotary vane vacuum pump 2L/s |
Double stage rotary vane vacuum pump 4L/s |
| Vacuum pump air inlet drying filter | ||
| Vacuum pump exhaust oil mist filter | ||
| Materials |
Interior - SUS304 mirror stainless steel Exterior - SUS304 embossed stainless steel Shelf - 5083 corrosion resistant aluminium plate Insulation - Aluminium silicate fibre Heater - Mica electrothermal film |
|
| Temperature Control Mode | 5" LCD colour touch screen, multi-stage PID program temperature control, single shelf independent temperature control | |
| Temperature Setting Mode |
Touch screen type | |
|
Timer |
0-9999mins/0-9999hrs (adjustable) | |
| Operation Function |
Fixed value operation, regular operation, automatic stop | |
| Fixed Value Mode |
Control temperature and vacuum degree at the same time | |
| Program Mode | Control temperature and control vacuum degree at the same time, 30 step programmable operation |
|
| Additional Function | Real-time temperature curve recording with USB data storage and export function Sensor deviation correction, temperature overshoot self-setting, internal parameter locking, power off parameter memory |
|
|
Internal Dimensions (W x D x H) |
415 x 370 x 340mm |
450 x 450 x 450mm |
|
External Dimensions (W x D x H) |
635 x 565 x 796mm (HS) 635 x 565 x 1296mm (HSP) |
670 x 645 x 906mm (HS) 670 x 645 x 1406mm (HSP) |
| Number of Shelves |
2 |
|
| Load per Shelf |
15kg |
|
| Shelf Space |
140mm |
185mm |
| Power Supply | AC240V/50Hz |
|
|
Power |
1200W (HS) 1600W (HSP) |
1600W (HS) 2000W (HSP) |
| Accessories | Shelves x 2 Shelf frames x 4 |
|
Images are illustrative only. Please check product details before ordering.
| Code | Size | Type | Pack Size | Availability* | Price (ex GST) | |
|---|---|---|---|---|---|---|
| ELA-PVO-52-HS | 52L | Heated shelves | Each | 6 weeks | AU $7,980.00 + Freight | |
| ELA-PVO-52-HSP | 52L | Heated shelves and pump | Each | 6 weeks | AU $10,290.00 + Freight | |
| ELA-PVO-92-HS | 92L | Heated shelves | Each | 6 weeks | AU $8,806.00 + Freight | |
| ELA-PVO-92-HSP | 92L | Heated shelves and pump | Each | 6 weeks | AU $11,326.00 + Freight |
