PELCO glass bottom dish assembly kits, clear wall

SKU: HTP14023-500   |   Availability ⓘ

PELCO glass bottom dish assembly kits, clear wall

SKU: HTP14023-500   |   Availability ⓘ
Size
Aperture
Pack Size
AU $1,959.00 Regular price

Taxes and shipping applied at checkout.

/

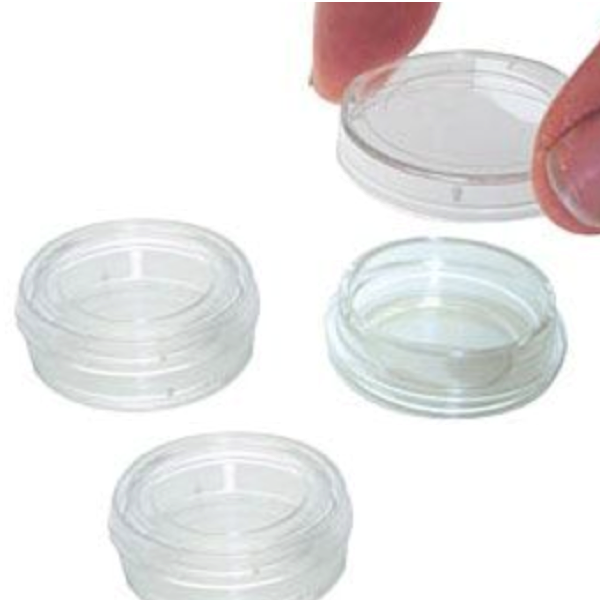

This easy do-it-yourself kit is available in two dish sizes and four bottom aperture sizes, with clear - or black walls and lids.

Each kit includes:

  • 500 dishes and lids
  • 500 top quality (SCHOTT D263M) round glass coverslips of corresponding size
  • 500 double-sided adhesive rings (3M)
  • a set of tweezers and,
  • a pair of protective latex gloves

Special two-part Assembly Device (available separately) made of high quality anodized aluminum serves to safely, precisely, easily, and quickly position the adhesive ring and the glass coverslip bottom and evenly distribute the gluing pressure.

The assembly routine is very simple and clean, it does not involve messy glues or the need for precise aim and motor skill. A ring of matching diameter carrying the specially formulated adhesive is peeled off its backing and mounted onto the blue part of the Assembly Device. The dish bottom, guided precisely by the top protrusion of the Device, is then pressed firmly on top of the ring. This achieves transfer of the Double Sided Adhesive (DSA) ring onto the dish bottom. Now take the second silicon liner of from the ?DSA' ring and the now sticky dish is pressed against the corresponding glass coverslip, which has been secured within the special slot in the red part of the assembly device. After four hours at room temperature to allow the bonding to complete, the newly made glass bottom dish is ready to use. Detailed assembly instructions are included with each WillCo Wells kit.

Each kit is supplied with #1.5H thickness and ra 0.005mm coverslip glass bottoms, unless specified as #1 when placing the order (custom).

Images are illustrative only. Please check product details before ordering.

Updated: 27-12-2024

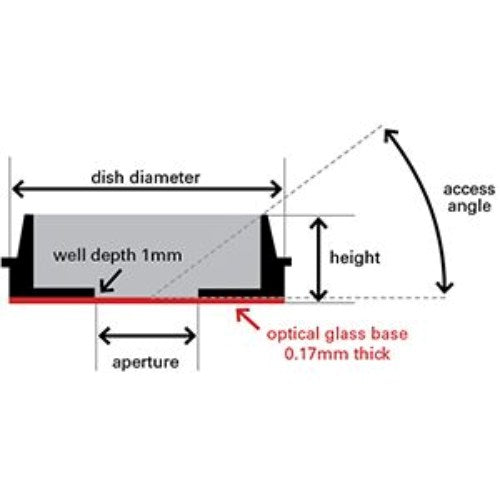

Code Size Aperture Pack Size Availability* Price (ex GST)
HTP14023-500 35mm dia. x 10mm high 22mm dia. Pack/500 3 weeks AU $1,959.00
HTP14025-500 50mm dia. x 7mm high 30mm dia. Pack/500 3 weeks AU $1,761.00
HTP14027-500 50mm dia. x 7mm high 40mm dia. Pack/500 3 weeks AU $1,761.00

* Availability Explanation

X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.

In Stock – Plenty of stock on the shelf, ready to ship.

No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
