Micro-tool tip, knife

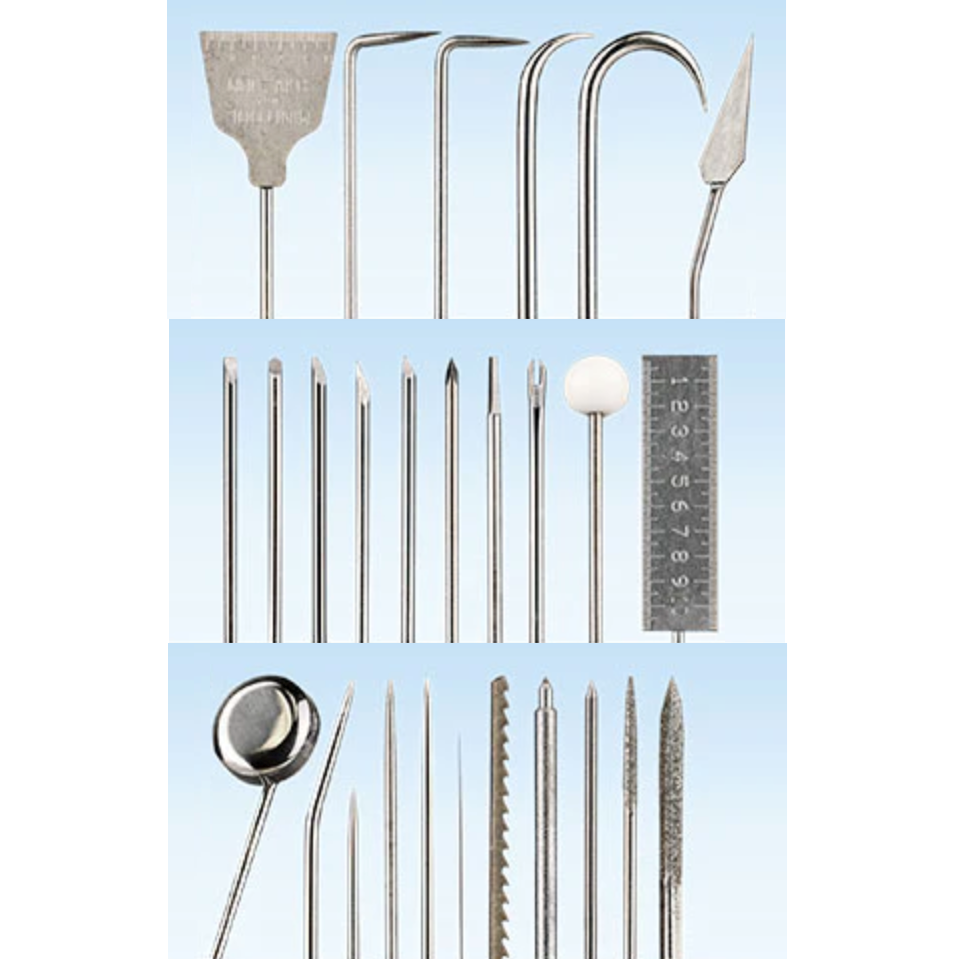

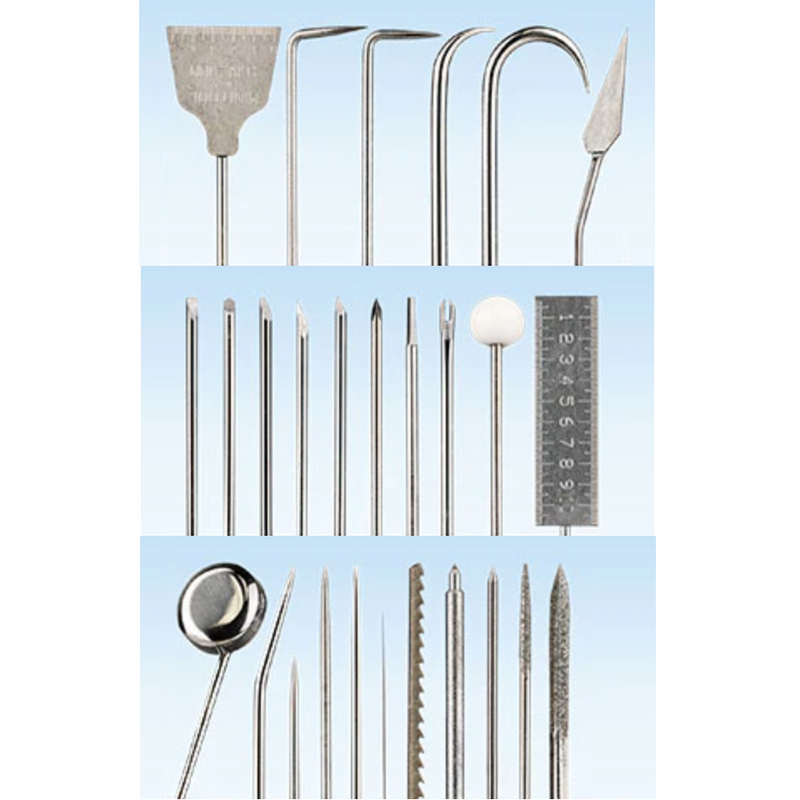

Micro-Tools are the smallest available precision instruments for laboratory and production use. Micro-Tools are available in different tip configurations with interchangeable tool handle. A threaded (tapped) handle (T900), this holds the tool. The tool is threaded for fixing to the handle, and holds in the case of T901 a needle 15mm x 0.5mm. The last 2mm of the needle are stepped down to only 0.12mm thick, and have a microscopic needle point - see above image. Tools on 0.5mm or larger shanks are not stepped down. Tip material is hardened tool steel unless otherwise noted.Caution: Micro-Tools are very fine, hard and brittle. Take special care when removing from the tube. Press the blue square holding the tool onto a flat surface with the tube up at a shallow angle. Hold the tube near the other end and gently twist back and forth while pulling very lightly. The tube will suddenly clear the blue plastic, and the tool could easily touch the tube. Some tools ar...

Micro-Tools are the smallest available precision instruments for laboratory and production use. Micro-Tools are available in different tip configurations with interchangeable tool handle. A threaded (tapped) handle (T900), this holds the tool. The tool is threaded for fixing to the handle, and holds in the case of T901 a needle 15mm x 0.5mm. The last 2mm of the needle are stepped down to only 0.12mm thick, and have a microscopic needle point - see above image. Tools on 0.5mm or larger shanks are not stepped down. Tip material is hardened tool steel unless otherwise noted.

Caution: Micro-Tools are very fine, hard and brittle. Take special care when removing from the tube. Press the blue square holding the tool onto a flat surface with the tube up at a shallow angle. Hold the tube near the other end and gently twist back and forth while pulling very lightly. The tube will suddenly clear the blue plastic, and the tool could easily touch the tube. Some tools are on a barely visible shaft extending slightly from the larger shaft. Practice removal first using the opposing blue stopper which does not hold a tool. See image below for clarification.

Note: Tools are packed by the manufacturer in perfect conditions. These tools like diamond knives and sapphire micro-scalpels are assumed to have been shipped in perfect conditions and any problems almost certainly are due to mishandling.

Code Title Style Shank Pack Size Availability Price Updated: 28-10-2021
T909-1000 Micro-tool tip, knife 45deg. 1.0mm each 2 weeks AU $108.00
T908-1000 Micro-tool tip, knife 20deg. 1.0mm each 2 weeks AU $108.00
T909-0120 Micro-tool tip, knife 45deg. 0.12mm each 2 weeks AU $138.00
T909-0250 Micro-tool tip, knife 45deg. 0.25mm each 1 in stock AU $108.00
T909-0500 Micro-tool tip, knife 45deg. 0.5mm each 2 weeks AU $96.00
T908-0120 Micro-tool tip, knife 20deg. 0.12mm each 2 weeks AU $138.00
T908-0250 Micro-tool tip, knife 20deg. 0.25mm each 2 weeks AU $108.00
T908-0500 Micro-tool tip, knife 20deg. 0.5mm each 2 weeks AU $96.00
Code Title Style Shank Pack Size Availability Price
T909-1000 Micro-tool tip, knife 45deg. 1.0mm each 2 weeks AU $108.00
T908-1000 Micro-tool tip, knife 20deg. 1.0mm each 2 weeks AU $108.00
T909-0120 Micro-tool tip, knife 45deg. 0.12mm each 2 weeks AU $138.00
T909-0250 Micro-tool tip, knife 45deg. 0.25mm each Only 1 AU $108.00
T909-0500 Micro-tool tip, knife 45deg. 0.5mm each 2 weeks AU $96.00
T908-0120 Micro-tool tip, knife 20deg. 0.12mm each 2 weeks AU $138.00
T908-0250 Micro-tool tip, knife 20deg. 0.25mm each 2 weeks AU $108.00
T908-0500 Micro-tool tip, knife 20deg. 0.5mm each 2 weeks AU $96.00
