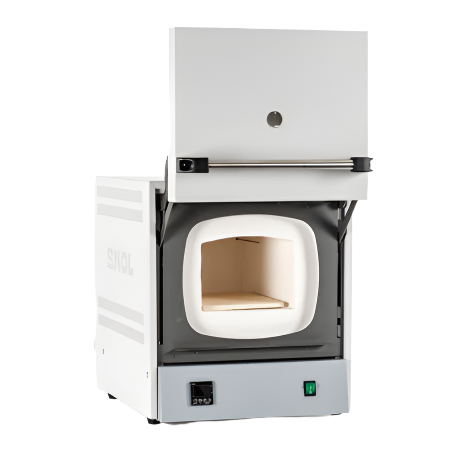

Small muffle furnaces with safety lift up door, +1100C

SKU: ESF-Prog-E5CC-T   |   Availability ⓘ

Small muffle furnaces with safety lift up door, +1100C

SKU: ESF-Prog-E5CC-T   |   Availability ⓘ
Type
Pack Size
Click here to view price

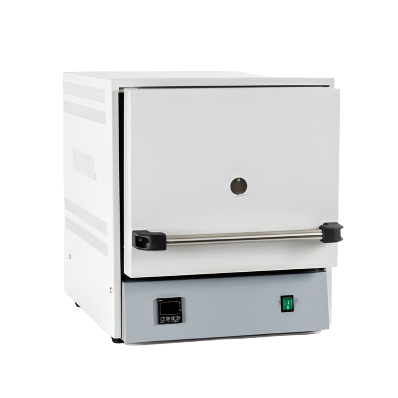

LABEC Small Form Muffle Furnaces are a light-weight, compact solution for laboratories where space is limited. These universal furnaces are designed for material testing, heat treatment such as hardening, loosening, normalising, and ceramic and stoneware firing up to 1100?C. These furnaces are constructed of powder-coated steel exteriors with a one-piece high thermal efficiency vacuum formed ceramic fibre chamber, with heating elements embedded within four sides. All models feature a lift up safety door with safety cutoff when the door is opened during operation, and ceramic bottom plate. Microprocessor temperature control provides good stability and uniformity, and the low thermal mass construction ensures fast heating times and low power consumption.

Specifications:

Model ESF-3-SD
ESF-8-SD
ESF-13-SD
ESF-22-SD
ESF-39-SD
Capacity 3L 8.2L 13L 22L 39L
Internal Dimensions 125 x 200 x 115mm 200 x 300 x 133mm 225 x 360 x 180mm 275 x 500 x 155mm 315 x 515 x 225mm
External Dimensions 340 x 470 x 430mm 440 x 560 x 510mm 500 x 700 x 550mm 600 x 890 x 610mm 648 x 899 x 739mm
Temperature Controller Digital PID Controller
Temperature Range +300?C to +1100?C
Temperature Stability / Uniformity
?1?C / ?10?C
Construction Internal - Ceramic fibre muffle
External - Powder coated steel
Safety Over temperature protection cut off, earth leakage breaker (ELB)
Power Supply 240V 50Hz 415V 3-phase
Power
(10A)
1700W 1800W 1800W 3000W 720W/10A/phase
Weight 19kg 28kg 38kg 58kg 74kg

Optional:

ESF-Prog-E5CC-T Omron E5CC-T  Programmable temperature controller
ESF-E3216-NP Eurotherm 3216  non-programmable temperature controller
ESF-E3216-PR Eurotherm 3208  programmable temperature controller
ESF-COMMS  iTools  PC connection and software
ESF-OTP-NA OTP Non-adjustable over temperature protection
ESF-OTP-ADJ OTP, Eurotherm 3216i Adjustable over temperature protection
ESF-TIME-D Timer Delayed furnace start
ESF-BUZZ Buzzer Audible signal
ESF-VENT-R Ventilation hole  Ceramin tube, back side Dia. 17mm
ESF-CHIMNEY Chimney Non-fan-forced
ESF-WINDOW-35 Window  35mm Dia. window, temperature up to 1100C
ESF-GASPURG Gas injection system Argon or Nitrogen (flow meter, reducer and connections)
ESF-GASBOX Gas box  Operate with protective gases (up to 1150?C)
ESF-Extraction Extraction vent Fan-forced extraction vent
EYZ086 Tongs Furnace tongs, long

ESF-SD-MF product brochure

Images are illustrative only. Please check product details before ordering.

Updated: 24-11-2024
Code Type Pack Size Availability* Price (ex GST)
ESF-Prog-E5CC-T Omron E5CC-T Each 6 weeks AU $457.00 + Freight
ESF-E3216-NP Eurotherm 3216 Each 6 weeks AU $504.00 + Freight
ESF-E3216-PR Eurotherm 3208 Each 6 weeks AU $880.00 + Freight
ESF-COMMS iTools Each 6 weeks AU $1,309.00 + Freight
ESF-OTP-NA OTP Each 6 weeks AU $266.00 + Freight
ESF-OTP-ADJ OTP, Eurotherm 3216i Each 6 weeks AU $527.00 + Freight
ESF-TIME-D Timer Each 6 weeks AU $219.00 + Freight
ESF-BUZZ Buzzer Each 6 weeks AU $89.00 + Freight
ESF-VENT-R Ventilation hole Each 6 weeks AU $66.00 + Freight
ESF-CHIMNEY Chimney Each 6 weeks AU $441.00 + Freight
ESF-WINDOW-35 Window Each 6 weeks AU $386.00 + Freight
EESF-GASBOX Gas box Each 6 weeks P.O.R.
ESF-Extraction Extraction vent Each 6 weeks AU $1,241.00 + Freight
EYZ086 Tongs Each 6 weeks AU $77.00 + Freight
ESF-3-SD 3L furnace Each 6 weeks AU $4,725.00 + Freight
ESF-8-SD 8L furnace Each 6 weeks AU $6,069.00 + Freight
ESF-13-SD 13L furnace Each 6 weeks AU $7,539.00 + Freight
ESF-22-SD 22L furnace Each 6 weeks AU $9,481.50 + Freight
ESF-39-SD 39L furnace Each 6 weeks AU $12,957.00 + Freight
