Name: Volatile matter furnaces, +1100C, 240V
Brand: Labec
SKU: ELA-VMF-S
Price: 7356.0 AUD
Availability: InStock

Capacity

3L

8L

13L

Pack Size

Each

Price Click here to view price

[{"id":42664274657470,"title":"3L \/ Each","option1":"3L","option2":"Each","option3":null,"sku":"ELA-VMF-S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Volatile matter furnaces, +1100C, 240V - 3L \/ Each","public_title":"3L \/ Each","options":["3L","Each"],"price":735600,"weight":50000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42664274624702,"title":"8L \/ Each","option1":"8L","option2":"Each","option3":null,"sku":"ELA-VMF-M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Volatile matter furnaces, +1100C, 240V - 8L \/ Each","public_title":"8L \/ Each","options":["8L","Each"],"price":835600,"weight":75000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":42664274591934,"title":"13L \/ Each","option1":"13L","option2":"Each","option3":null,"sku":"ELA-VMF-L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Volatile matter furnaces, +1100C, 240V - 13L \/ Each","public_title":"13L \/ Each","options":["13L","Each"],"price":1040600,"weight":95000,"compare_at_price":null,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

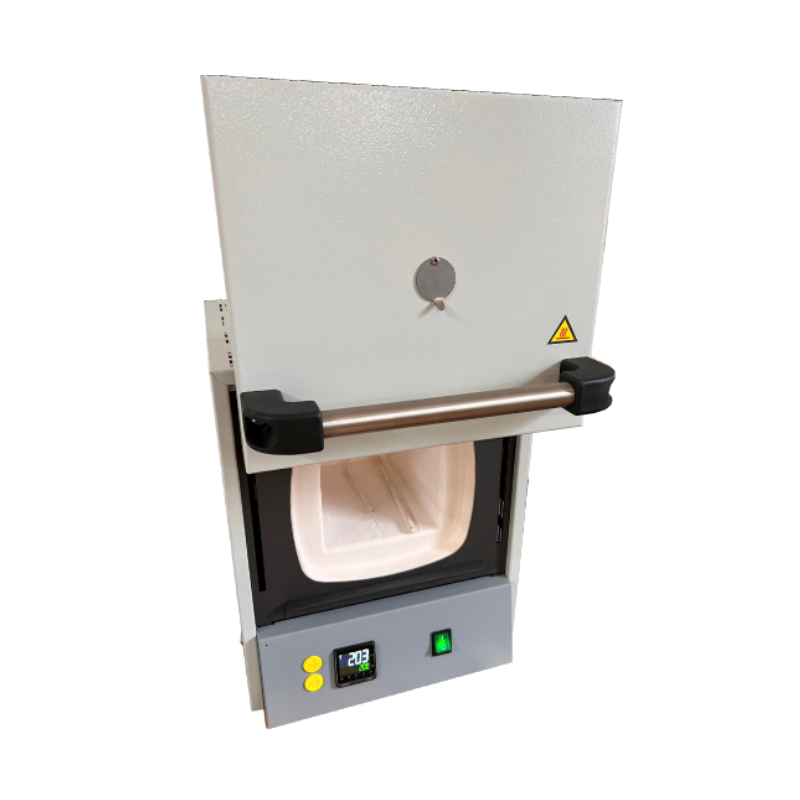

Volatile Matter Furnaces (up to +1100°C)

Strongly constructed of zinc coated steel with powder coat finish. It is insulated with top grade Kaowool ceramic fibre blanket. The steel cover around the muffle is surrounded by an air cavity and by gravity convection draws heat away from the bottom and out through the top reducing the wall temperature of the outer body. Kanthal A1 Element is controlled by a microprocessor based PID Controller complete with Auto Tune function and sensor compensation for accurate temperature control. An over temperature cutout is also provided as a standard feature.

Construction

Strongly constructed of zinc coated steel powder coated Wedgewood blue with Hi Temp black front face door. The muffle is supported by a refractory mould at the front and insulating bricks at the back. It is insulated with top grade Kaowool ceramic fibre blanket. The steel cover around the muffle is surrounded by an air cavity and by gravity convection draws heat away from the bottom and out through the top reducing the wall temperature of the outer body. An air gap at the front and louvres on back panel allow adequate air flow to ensure a cool instrument panel. All cantilever door furnaces are fitted with a door switch for safety. Kanthal A1 Element is controlled by a microprocessor based PID Controller complete with Auto Tune function and sensor compensation for accurate temperature control. An over temperature cutout is also provided as a standard feature.

Controller
Kanthal A1 Element is controlled by a microprocessor based PID Controller complete with Auto Tune function and sensor compensation for accurate temperature control. An overtemp cutout is also provided as a standard feature.

Features
The furnace has three thermocouples. A permanently fixed stainless steel sheathed thermocouple which controls the temperature of the muffle. A ceramic sheathed thermocouple permanently located so as to position the four place crucible stand in the uniform temperature zone, and an unsheathed thermocouple which can be positioned under any of the four crucibles.

The temperature of the unsheathed thermocouple is related to the sheathed thermocouple and must be +900°C ±5°C. Both of these thermocouples are terminated on the front panel of the furnace for easy monitoring. The furnace has adequate heating to regain +885°C after four minutes and +900°C ±5°C within seven minutes of the insertion of a cold stand and it's crucibles, as required by the standard.

A four place crucible stand, flue cap and floor tile are provided with the furnace. Probe insertion ports in the door are optional.

Specifications:

Model	ELA-VMF-S
Capacity	3L
Internal Dimensions (W x D x H)	125 x 200 x 115mm
External Dimensions (W x D x H)	340 x 470 x 430mm
Power Supply	240V 10A
Power	1800W
Weight	30kg

ELA-VWF furnace brochure

Images are illustrative only. Please check product details before ordering.

Updated: 24-11-2024

Code	Capacity	Pack Size	Availability*	Price (ex GST)
ELA-VMF-S	3L	Each	6 weeks	AU $7,356.00 + Freight
ELA-VMF-M	8L	Each	6 weeks	AU $8,356.00 + Freight
ELA-VMF-L	13L	Each	6 weeks	AU $10,406.00 + Freight
