Solvent evaporation drying ovens

SKU: EM-PF120-SC   |   Availability ⓘ

Solvent evaporation drying ovens

SKU: EM-PF120-SC   |   Availability ⓘ
Size
Pack Size
Click here to view price

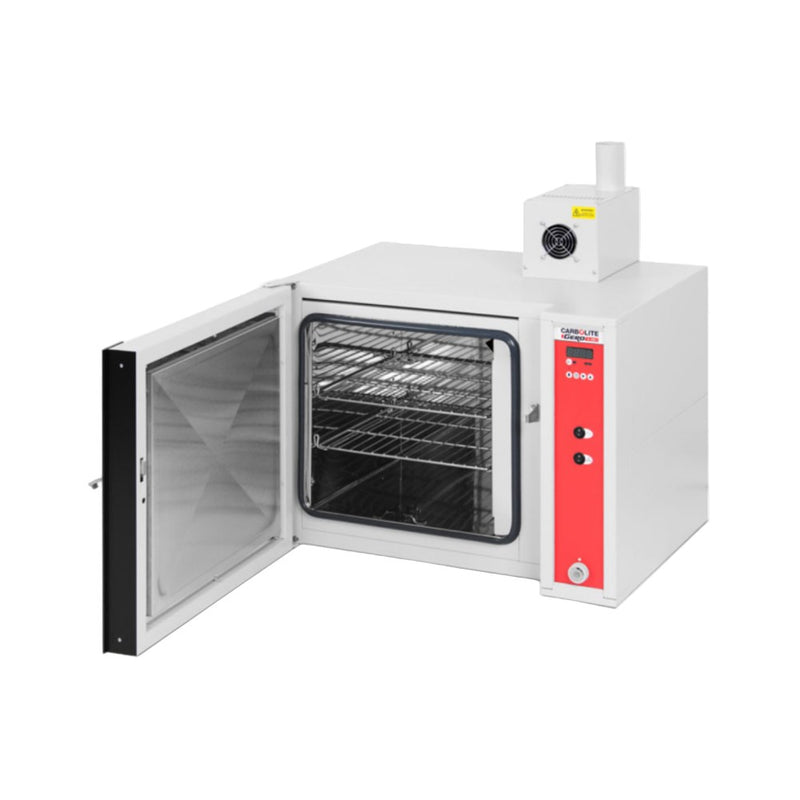

Labec Solvent Drying ovens are fan-forced with temperatures up to 300ºC. Designed for solvent evaporation, these ovens feature a powered exhaust fan and a specially designed explosion relief panel at the rear of the oven which will break in the event of a rapid build up of pressure in the chamber to prevent the door being blown open. Safety features include a differential pressure alarm and over-temperature protection alarm. Available in three sizes.

Specifications:

Model EM-PF60-SC
EM-PF120-SC
EM-PF200-SC
Capacity 66L 128L 230L
Internal Dimensions (H x W x D)
400 x 392 x 420mm 500 x 492 x 520mm
750 x 590 x 520mm
External Dimensions (H x W x D)
570 x 765 x 570mm 670 x 865 x 670mm 920 x 965 x 670mm
Weight 45kg 60kg 75kg
Shelves 2 supplied
5 maximum
2 supplied
9 maximum
2 supplied
15 maximum
Maximum load/shelf 10kg
Maximum Load
30kg
40kg
50kg
Power 1500W 2000W 2700W
Holding Power at Max Temperature 600W 800W 1250W
Temperature Range
Ambient+5°C to 300°C
Temperature Stability on/off control (0°C) ±1°C
Temperature Stability PID control (0°C)
±0.2°C
Heating Time
4.5mins to 100°C
12mins to 200°C
25mins to 300°C
4.5mins to 100°C
12mins to 200°C
25mins to 300°C
4.5mins to 100°C
14mins to 200°C
30mins to 300°C
Recovery Time 1mins to 100°C
2.5mins to 200°C
4mins to 300°C
1mins to 100°C
2.5mins to 200°C
4mins to 300°C
1mins to 100°C
3mins to 200°C
5mins to 300°C
Air Exchanges Volume
10000L/h @ 100°C
Air Exchanges
153 exchanges/hr 79 exchanges/hr
44 exchanges/hr

EM-PF product brochure

NOTE: Although an oven may be provided with comprehensive precautions, explosions can still occur due to failure of components, inadequate servicing, or deliberate scotching of safety devices. The probability of fatal or serious injury to work people, or serious damage to the oven, can be reduced substantially if suitable explosion relief is provided, coupled with adequate securing of the doors of the oven to prevent their becoming missiles in the event of an explosion. It is recommended that explosion relief panels are fitted to all solvent evaporating ovens Irrespective of chamber volume.

Solvent evaporation drying ovens

Images are illustrative only. Please check product details before ordering.

Updated: 25-12-2024
Code Size Pack Size Availability* Price (ex GST)
EM-PF120-SC 128L Each 6 weeks AU $22,900.00 + Freight
EM-PF200-SC 230L Each 6 weeks AU $24,500.00 + Freight
EM-PF60-SC 66L Each 6 weeks AU $18,900.00 + Freight
